Data explorer

Working with the data explorer

Toggle on the preview feature documentation to see upcoming changes to the existing functionality.

Overview

In the data explorer, data points (measurements or sensor data) can be visualized.

Requirements

ROLES & PERMISSIONS:

  • To view and select all available data points: READ permission for permission type “Inventory” or READ permission for “Inventory” in the inventory roles
  • To visualize already selected data points: READ permission for permission type “Measurements” or READ permission for “Measurements” in the inventory roles
  • To send as widget to report/dashboard: ADMIN permission for permission type “Inventory”

Note that datapoints existing in the data point library are visible by anyone without the need of any permission.

The data explorer is available for all assets at once or just for a particular asset. To access the data explorer:

  • Click Data explorer in the navigator to visualize all data points of all assets.

  • Navigate to a particular asset and switch to the Data explorer tab to visualize all data points of this particular asset and its subassets.

In the data explorer, you see a list of available data points at the right. The first five data points of the selected device or group are shown by default. For details on how to add data points see To add a data point.

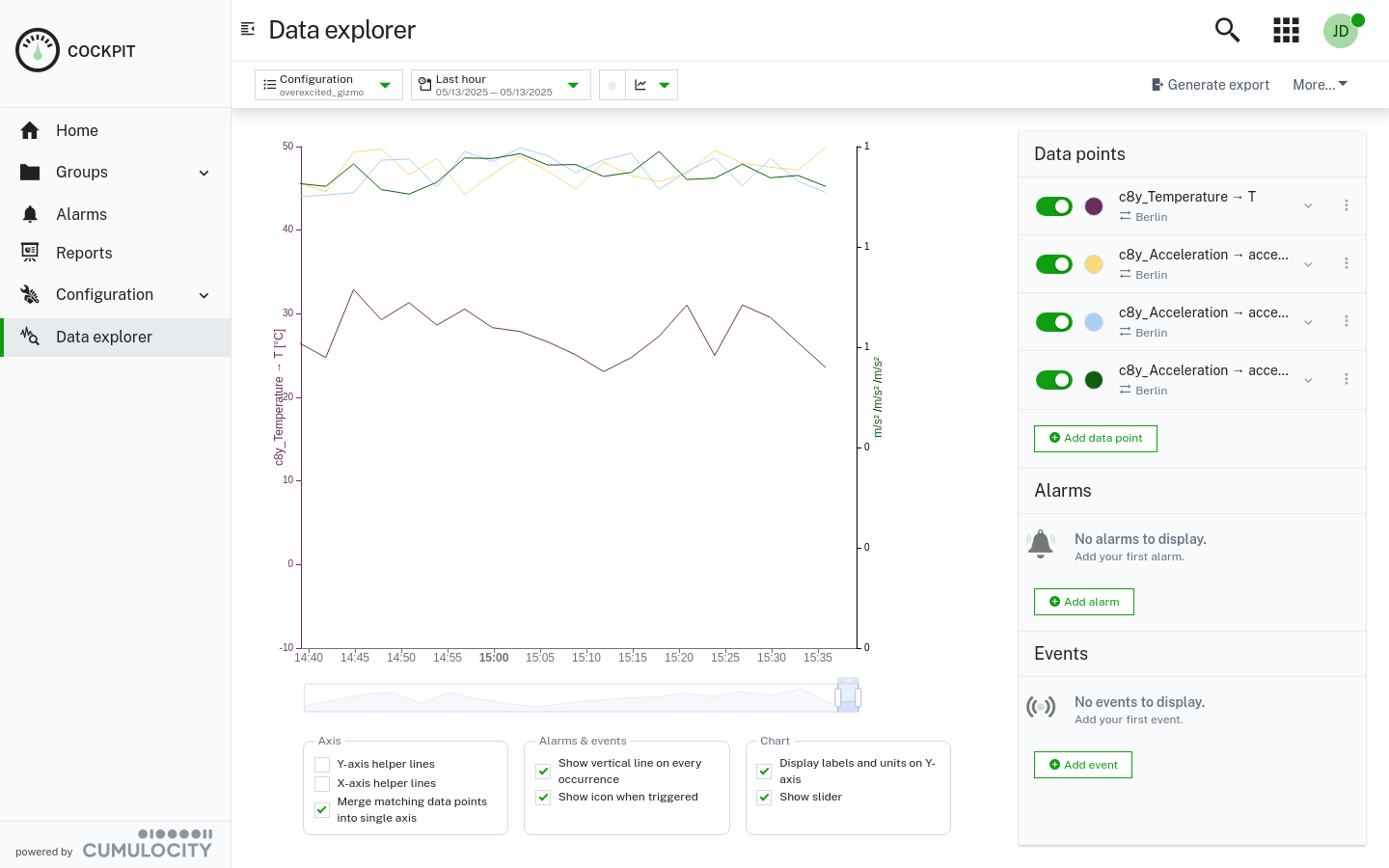

On the left, in the main card, you see its visualization.

Data explorer
Data explorer

The visualization is generated based on data point properties.

The data points properties are pre-filled as follows:

  • If these properties have been customized previously, these values are used, see To customize data point properties.
  • If the data points have a matching definition in the data point library, the values from the data point library are used.

There can be more than one matching data point entry in the data point library. In this case, the first one is selected automatically by the system.

For details on modifying the visualization in general, see Changing data explorer visualization. For details on customizing the properties of a particular data point, see To customize data point properties.

Example:

Let’s assume you have a temperature data point defined in the library and a device which sends temperature measurements (matching by fragment and series with the data point in the library). If you create an “On measurement threshold create alarm” smart rule and select the data point from the library, then it will use the settings from the library to decide whether to create an alarm.

Info
Data points are visible to all authenticated users of the tenant, regardless of their inventory role permission.

To add a data point

To add a data point to the data explorer, click Add data point at the bottom of the Data points card.

Add data point

On the left hand side of the dialog, select a device from the asset hierarchy. Only the asset hierarchy below the objects selected in the navigator is visible. If Data explorer in the navigator was selected, the complete asset hierarchy is visible.

The center of the dialog shows all data points of the selected object. Select the data points you want to show in the data explorer. Click Add to add all selected data points to the list of data points.

The right hand side shows all of the selected data points.

For further information on the data point library refer to Data point library.

To remove a data point from the data point list, click the menu icon and select Remove from list.

To customize data point properties

You can customize the visualization of a particular data point to your preferences. To do so, expand the data point entry in the data point list.

The following fields may be modified:

Field Description
Label Name of the data point, displayed on the y-axis to identify the data point. Below the label, the target is displayed, showing the name of the asset and the internal name of the data point (measurement fragment and series). This information is not editable.
Unit Unit used on the y-axis.
Min/Max Range shown on the y-axis. If not specified, the y-axis is scaled based on measurement values retrieved per specified time range.
Target The target value is currently not shown in the diagram. The value is used in the "Data point list" widget.
Yellow range min/max Defines the range when MINOR alarms should be raised by threshold rule.
Red range min/max Defines the range when CRITICAL alarms should be raised by threshold rule.
Display Value displayed when data is aggregated. May be "Minimum", Maximum", Minimum and maximum".
Chart type The type of chart used for the visualization. May be one of "Line", "Points", "Line and points", "Bars", "Step before" (alternating between vertical and horizontal segments, as in a step function) or "Step after" (alternating between horizontal and vertical segments). Default value is "line".
Y axis Defines where the y-axis is shown. May be one of "Auto", "Left", "Right". Default value is "Auto".

To add or clone a configuration

Configurations in the data explorer let you create, save, and manage different configurations tailored to your specific needs - whether for individual devices, projects, or use cases. Each configuration stores your selected data points, chart layout, time range, and all visual customizations. Configurations are saved automatically in your browser’s local storage, so any updates (like adding or removing data points or changing the visualization) are preserved instantly.

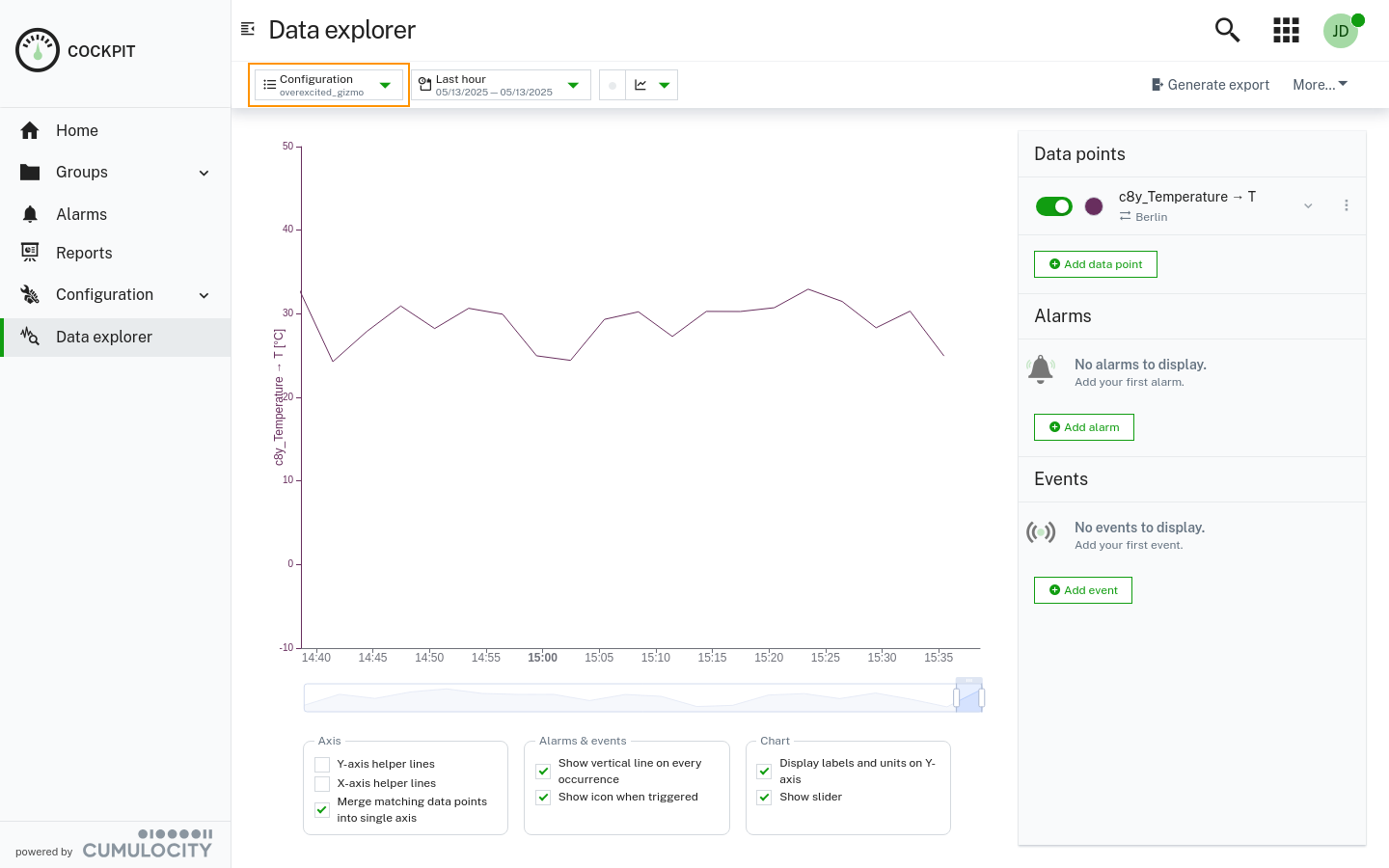

You can switch between multiple configurations using the configuration menu, located at the top left of the Data explorer page. This menu provides the following actions:

  • Create new configuration – Start from a blank configuration with no data points or settings applied.
  • Clone a configuration – Duplicate the current configurations to use it as a starting point for a new setup.
  • Delete all configurations (except the active one) – Clean up your saved configurations by removing all others, keeping only the currently active configuration.

Each configuration has a unique URL that can be shared with other users. To use the shared configuration URL, those users must have access to the referenced devices and data points.

Data explorer configurations

Info
Since configurations are stored locally, they are tied to your browser and device. Clearing browser data will remove them.

Y-axis behaviour

Per default, the first data point is positioned to the left y-axis and the remaining data points to the right. This behavior can be changed by modifying the respective value “Y-axis” for a particular data point (to “Left” or “Right”, see above).

Each data point is shown on its own y-axis, unless the following condition is met:

  • Two data points having the same minimum and the same maximum value.

In this case, both data points share the same y-axis. This y-axis only shows the unit (or multiple units, in case they are different). The label is not shown.

To add alarms or events

In addition to data points you can also add alarms or events to the data explorer.

In the Alarms/Events card, click Add alarm/event to add an alarm or event.

In the upcoming dialog, you can select an alarm or event from the list of recent alarms and events. Click Add to add your selection.

Expand an event, to modify its properties.

Click the menu icon and in the context menu select Remove, to remove the entry from the list.

As with data points, you can turn the visibility of an alarm/ event in the data explorer on and off by using the toggle.

To export measurement data

You may download measurement data as CSV or Excel files. The exported data shows the following information, divided into columns:

  • Time when the specific measurement was taken
  • Source of the measurement
  • Name of the device being used
  • Fragment series (for example c8y_SpeedMeasurement)
  • Value of the measurement
  • Unit used for a particular measurement (for example “C”, “km/h”, “sec”)
To export measurement data, click the More… button in the top menu bar and select either Download as CSV or Download as Excel, according to your preferences.

To export measurement data, click the Generate export button in the top menu bar and select your desired time range, data scope and file type.

Click Download to generate and save the file to your computer.

Changing the visualization

To change the visualization in the data explorer, you can modify several properties.

Time range

You can change the time range being shown. By default, you see the values for the last hour.

To change the time range on the x-axis, use one of the following options:

  • Select a different time range from the dropdown list in the top menu bar.
  • Enter a custom time range into the From and To fields in the data explorer.
  • Drag the x-axis and move left or right to move the time period.
  • Double-click into the data explorer to zoom out.
Info
Real-time updates will be switched off if you set a time range in the past.

Aggregation

You may aggregate the data being displayed to get an efficient overview over larger time periods.

By default, aggregation is set to “None”. This value may be changed in the Aggregation field in the top menu bar. Available values are “Minutely”, “Hourly” or “Daily”, depending on the selected time range.

When aggregation is activated, the timestamp which is displayed in data point graphs or data point tables changes slightly as follows to improve transparency:

  • If no aggregation is selected the date, hour, minute and second are shown:
    27 Jan 2020 17:26:55
  • If minutely aggregation is selected, the second indication will not be shown:
    27 Jan 2020 17:27-17:28
  • If hourly aggregation is selected, the minute and second indication will not be shown:
    27 Jan 2020 05:00-06:00
  • If daily aggregation is selected, only the day will be shown:
    27 Jan 2020-28 Jan 2020.

Realtime updating

By default, realtime updating is enabled which means that the data being shown is updated as new data flows into the system from the connected devices.

To turn realtime updating on or off, click Realtime in the top menu bar. A green light indicates, that realtime updating is enabled.

Data point visibility

For each data point, its visibility can be switched on or off by using the toggle left from the data point name.

Interactive legend (available only for the Data point graph widget)

The legend, located above the chart, provides quick control over what’s visible in your chart. You can toggle visibility of individual data points or alarms/events by clicking their name.

Changing the chart options

You can customize the chart options to control how your data is visualized, including settings like line type, aggregation, and display preferences. These options can be adjusted directly in the data explorer (below the chart) or in the configuration of the “Data point graph” widget.

Category Option Description
Axis Y-axis helper lines Displays horizontal guide lines along the Y-axis for easier value alignment.
X-axis helper lines Displays vertical guide lines along the X-axis for easier time alignment.
Merge matching data points into single axis Groups data points with the same min/max values onto one Y-axis for clarity. The min and max values must be set.
Alarms & events Show vertical line on every occurrence Displays a vertical line on the chart at each alarm or event timestamp.
Show icon when triggered Shows an icon on the chart where alarms or events have occurred.
Chart Display labels and units on Y-axis Displays axis labels and measurement units for each data point on the Y-axis.
Show slider Toggles the visibility of the data slider below the chart. See section below for more info.

Working with the data slider

The data slider, located at the bottom of the chart, provides an overview of a longer time range than the currently selected one - offering a summarized view to help navigate large datasets. For example, if “Last hour” is selected, the slider might display data from the past 24 hours. You can zoom into any portion of the slider and pan across the range to adjust the visible data in the main chart, making it easier to explore and focus on specific periods of interest.

Creating widgets

If you want to keep your current configuration in the data explorer for later usage, save it as a widget.

To send as widget to dashboard

To create a widget from the data explorer of a particular asset, click More… in the top menu bar and select Send as widget to dashboard from the context menu.

In the upcoming dialog, select one of the dashboards available for the current object and click Select to add the data explorer as widget to the selected dashboard.

Info
To use this function, first a dashboard must be created. For details on dashboards, refer to Working with dashboards.

To send as widget to report

To create a widget from the data explorer of in the navigator, click More… in the top menu bar and select Send as a widget to report from the context menu.

In the upcoming dialog, select one of the reports available and click Select to add the data explorer as widget to the selected report.

Info
To use this function, first a report must be created. For details on reports, refer to Working with reports.
