Monitoring

Audit logs

Audit logs show security-relevant operations a user has processed. For example, an audit log is generated when a user logs into a gateway.

To view audit logs

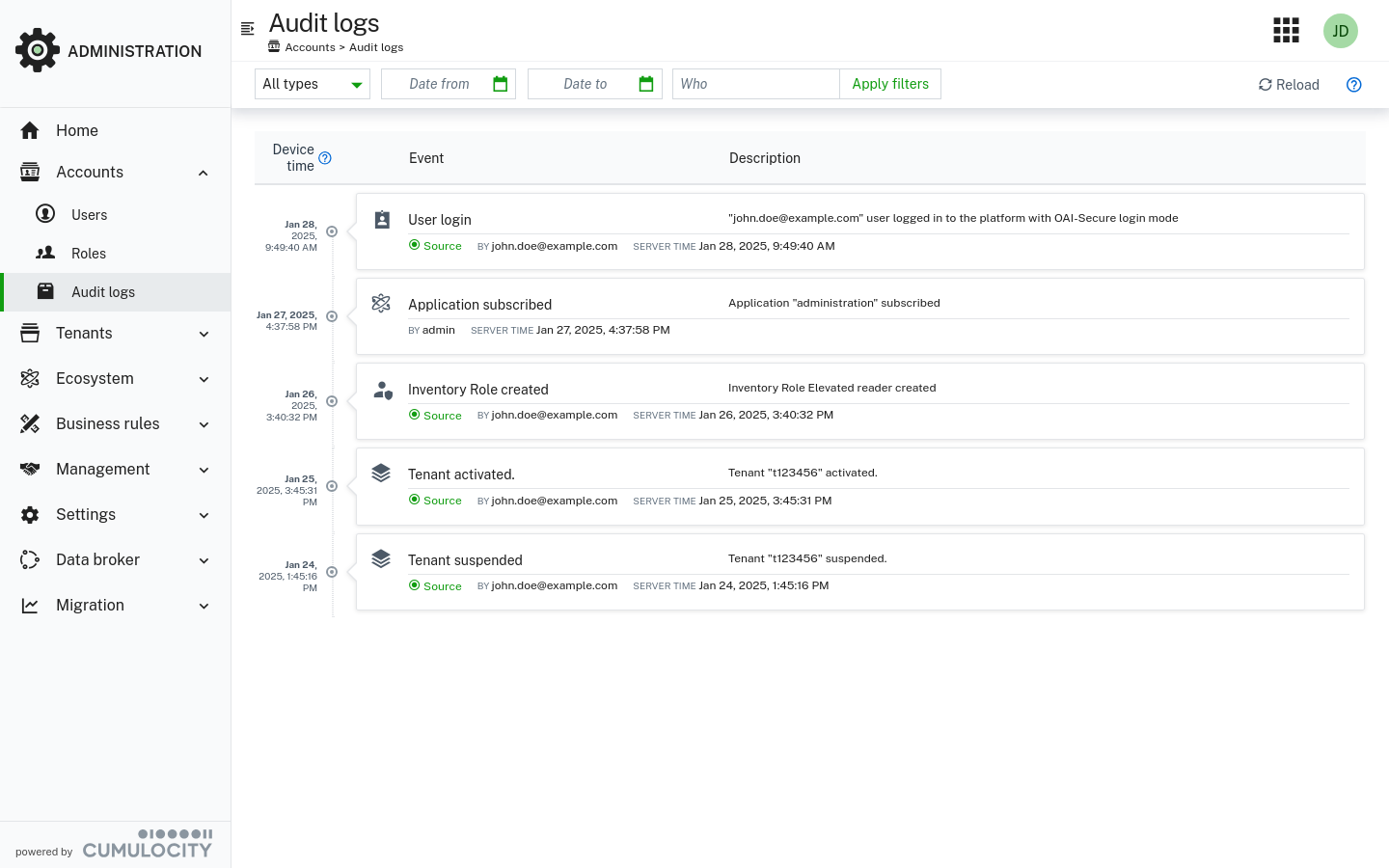

To view the audit log list, click Audit logs in the Accounts menu. For each log entry, the following information is provided:

Only the last 100 logs are visible. Scroll down the page to Load more to view more log entries.

To filter logs

In order to easily search through logs, you can filter logs by:

• Type (alarm, operation, smart rule, and so on)
• Device time (provide a date range in “From” and/or “To” inputs)
• User

To apply a filter, click the Apply button next to the respective filter field. To discard filters, click the clear icon next to the Apply button (only visible if filters are set).

Audit log types

Messaging Service

The Messaging Service is a publish/subscribe messaging and message streaming component embedded in the Cumulocity platform. It provides asynchronous communication between platform components and user-facing features for moving real-time data into and out of the platform. The features that use the Messaging Service include the microservice-based data broker, Notifications 2.0, and the MQTT Service.

Topics are the core concept underlying all of the features using the Messaging Service. A topic is a logical channel for delivering messages from publishers to subscribers. Each topic may have any number of publishers and subscribers, and in general, every subscriber to a topic receives the messages sent by every publisher to that topic. All subscribers of a topic receive the published messages in the same order. The topic persistently stores published messages until every subscriber has acknowledged that they have successfully received them. This means that the Messaging Service can guarantee the delivery of every published message to every subscriber.

The following sections show how to monitor your tenant’s usage of the Messaging Service for each of the services that use it.

To view the topics

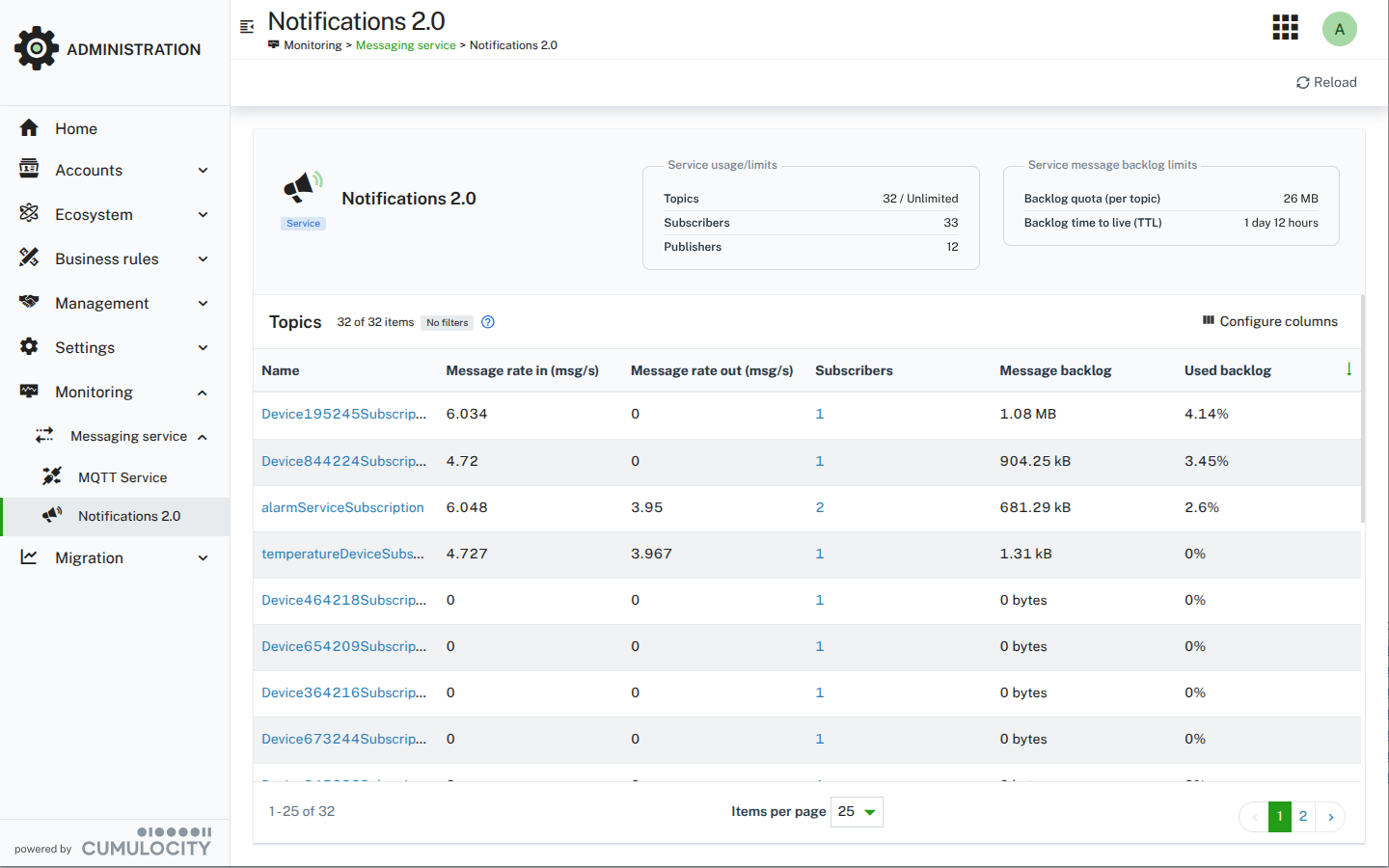

Click Messaging Service in the Monitoring menu in the navigator to display a list of all features that use the Messaging Service. Next to the feature name, you see basic information on the feature’s usage of the Messaging Service, such as the number of topics, publishers, and subscribers. Select a feature and click it to see the details. This displays a list of all topics used by the feature and the limits that are applied for each of these topics.

Topic list

The topic list shows the following information for each topic:

Refer to the feature-specific documentation below for more information on how to map the topic name to the source and how to clear the backlog when reaching the unsafe range.

Messaging Service limits

All the backlog limits visible at the top of the topics list view are applied per topic. This means if the backlog quota is set to 25MB, each topic will queue messages until it reaches the configured limit. Limits are Cumulocity platform wide, and only the Operations team can change them.

To view the topic details

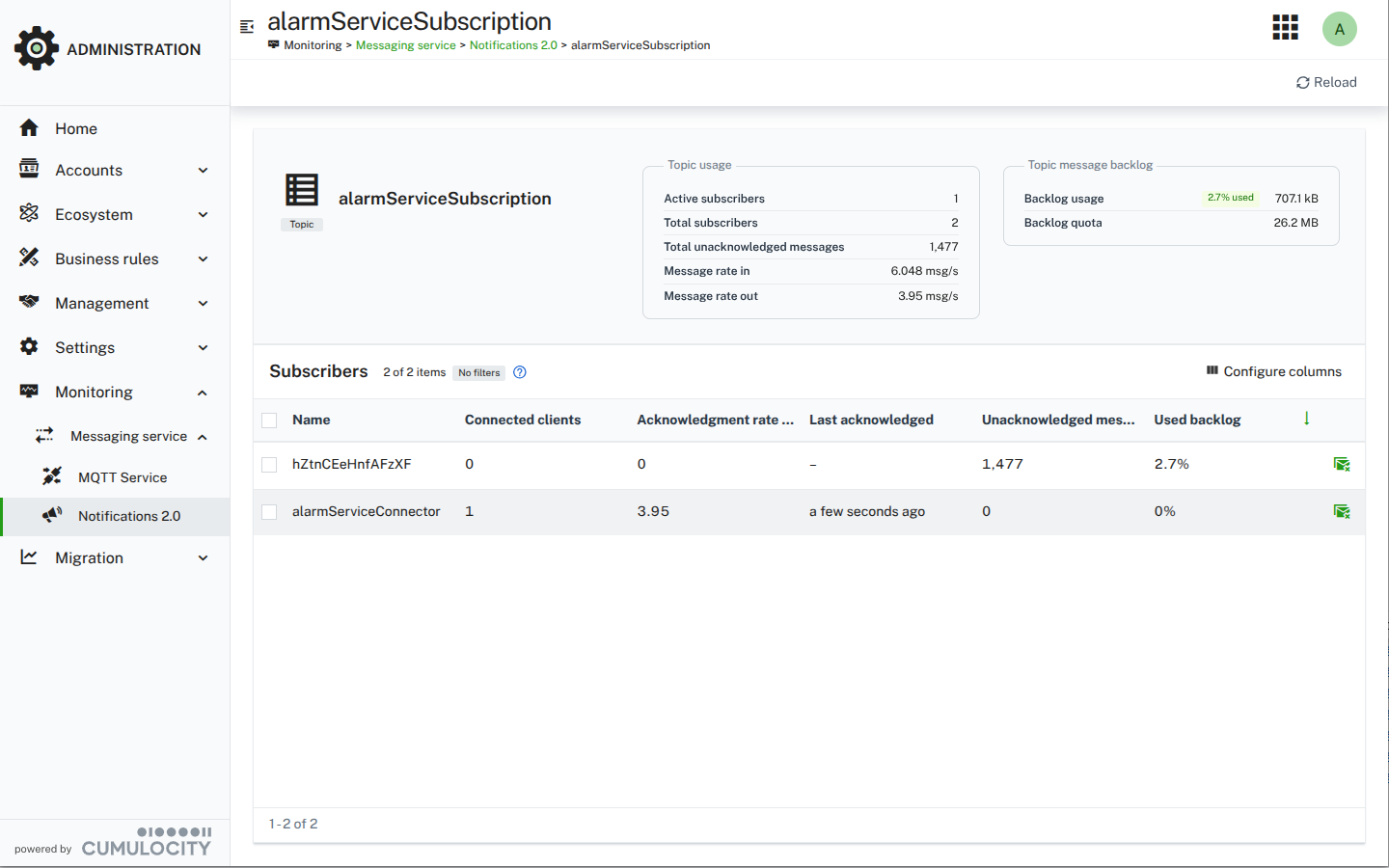

Click on a selected topic name to navigate to the topic details view. The view contains information about the topic at the top and the list of all subscribers for that topic below.

Subscriber list

The subscriber list shows the following information for each subscriber:

Refer to the feature-specific documentation below for more information on how to map the subscriber name to the destination and how to clear the backlog when reaching the unsafe range.

Monitoring Notifications 2.0

Topic and subscriber

The topic name is the same as the subscription field used in the Notifications 2.0 Subscriptions API and the Notifications 2.0 Tokens API.

The subscriber name is the same as the subscriber field used in the Notifications 2.0 Tokens API.

The subscriber is created the first time that a Notifications 2.0 WebSocket connection is established using a token with given subscription and subscriber names. The topic itself is created the first time that any Notifications 2.0 WebSocket connection is established using a token with the given subscription name. However, once the subscriber is created it will not be deleted even if the WebSocket connection is disconnected. That is, the Messaging Service will collect and persist the messages under the given topic until either they are consumed, they reach the configured time-to-live (TTL) interval, or the subscriber is explicitly unsubscribed from the topic. Refer to the consumer lifecycle for more details.

Clear the backlog

When the Messaging Service backlog is full, no new messages can be added to the backlog until it is cleared. REST requests that are also supposed to produce a notification will fail with a 500 status code and a message saying that the backlog quota has been reached. Clients working with Cumulocity must be aware of this situation and handle the error appropriately. In this situation, the backlog must be cleared before continuing work. There are various ways to clear the backlog from Notifications 2.0 topics.

Consume messages

If the topic and subscriber were created, there are probably also valuable messages stored in the Messaging Service that should be consumed. To consume and acknowledge the messages for a given topic and subscriber:

• Create the Notifications 2.0 Token for the selected topic and subscriber.
• Use the token to create a Notifications 2.0 WebSocket connection to the topic.
• Process and acknowledge all the messages received via the WebSocket connection.

This will remove the messages from the Messaging Service and clear the backlog for the given topic and subscriber, but the action is not permanent. Since the Notifications 2.0 subscription and the subscriber still exist, the backlog can fill again with new messages if they are not consumed continuously.

Unsubscribe the subscriber using Notifications 2.0 API

If the subscriber is not needed anymore and there are no valuable messages that should be consumed, the subscriber can be unsubscribed. To do this:

• Create the Notifications 2.0 Token for the selected topic and subscriber.
• Use the token to unsubscribe the subscriber from the topic by calling the Notifications 2.0 Token Unsubscribe API.

This will remove the subscriber from the Messaging Service and clear the backlog for the given subscriber, and potentially the whole topic if there are no more subscribers with unconsumed messages. If the subscriber is not recreated by establishing a Notifications 2.0 WebSocket connection to the topic, this action is permanent, meaning the backlog won’t grow again. If there are no more active subscribers for the topic, it is also recommended to delete the Notifications 2.0 Subscription.

Unsubscribe the subscriber via the UI

If the subscriber is no longer needed and there are no valuable messages that should be consumed, the subscriber can be unsubscribed directly from the UI. To do this, select the subscriber from the subscriber list in the Messaging Service page and click the unsubscribe icon. This action is equivalent to unsubscribing the subscriber using Notifications 2.0 API. All information about this being a permanent action and clearing the backlog is the same as described above.

Monitoring the MQTT Service

The MQTT Service creates a fixed set of topics per tenant for routing device traffic. These topics are the primary way to monitor whether the MQTT Service data flow is working correctly.

Topics

The MQTT Service creates the following topics:

Subscribers

The expected subscribers for each topic are:

• from-device: One or more subscribers used in custom microservice implementations or Streaming Analytics. This is the most important topic to monitor for custom integrations.
• to-device, smartrest-to-device: One subscriber per MQTT Service instance, for example, c8y-mqtt-service-0, c8y-mqtt-service-1.
• smartrest-from-device: One subscriber with one consumer per Cumulocity core instance, for example, cumulocity-core.

Clear the backlog

When the Messaging Service backlog is full, no new messages can be added to the backlog until it is cleared. In this situation, client behavior depends on the MQTT protocol version used:

• An MQTT client using protocol version 3.1.1 will simply be disconnected.
• An MQTT client using protocol version 5 will get a negative PUBACK response with 0x97 (quota exceeded) reason code, but it will still remain connected.

Implementations connecting to the MQTT Service must be aware of this and handle these errors appropriately.

For the to-device, smartrest-from-device, and smartrest-to-device topics, do not attempt to clear the backlog manually. These subscribers are managed by the MQTT Service and Cumulocity core, which re-create them automatically after unsubscription. If the backlog is full on one of these topics, contact product support.

Clear the from-device backlog

If the backlog is full on the from-device topic, first check whether your consumer (custom microservice or Streaming Analytics) is running and actively processing messages. If the consumer is healthy, the backlog will decrease over time.

If the consumer cannot process the messages and the backlog must be cleared immediately, you can unsubscribe the subscriber via the UI. To do this, select the subscriber from the subscriber list in the Messaging Service page and click the unsubscribe icon.

Be aware that this action:

• Removes the subscriber and clears the backlog for all devices on the from-device topic.
• Permanently discards all messages that were in the backlog at the time of unsubscription.
• Does not affect the MQTT devices themselves — they continue sending messages, and new messages are delivered once the consumer reconnects and re-subscribes.

Frequently Asked Questions (FAQ)

What should I do when encountering a high number of topics?

A high number of topics could be normal behavior when dealing with many devices, but there could also be a situation where new topics are generated unnecessarily:

• Test topics that were never cleared - check for unused topics that can be cleaned up.
• Topics carrying the same data - topic names should be reused where possible to avoid unnecessary resource consumption. If you have multiple topics carrying the same data, consider merging them into a single topic.

Note that the MQTT Service creates a fixed set of topics per tenant (for example, to-device, from-device, smartrest-from-device, smartrest-to-device). A high topic count in the MQTT Service section is not expected and may indicate an issue.

What should I do when encountering a high number of subscribers?

If you have a single microservice or a single client consuming messages from the Messaging Service, you should typically only have a single subscriber. Check if the subscriber name used by your client is unique and reused consistently when connecting to the Messaging Service. A common pitfall is generating a random subscriber name each time a new connection to the Messaging Service is established.

Multiple subscribers are expected when multiple distinct clients consume from the same topic or when using shared consumer tokens.

For the MQTT Service from-device topic, the number of subscribers depends on your implementation. If you have a single custom microservice or Streaming Analytics flow consuming device messages, you should see a single subscriber. For the to-device and smartrest-to-device topics, the number of subscribers should match the number of MQTT Service instances running in your environment. For the smartrest-from-device topic, there should be one subscriber with a number of consumers that matches the number of Cumulocity core instances in your environment. These consumers will partition the messages on the topic across the core instances so that each message is processed by a single core.
