Analytics rules plugin

Getting started with the Analytics rules plugin

What is the Analytics rules plugin

The Analytics rules plugin extends the Analytics Builder capabilities within Streaming Analytics by enabling users to create and manage Analytics Builder model instances directly from device and group contexts within applications such as Device Management and Cockpit.

For more details about Analytics Builder, refer to Analytics Builder.

Prerequisites

Before using the Analytics rules plugin, ensure that the following requirements are met:

• The tenant is subscribed to the Streaming Analytics microservice that supports the Analytics Builder capability.
• The Analytics rules plugin is installed in the desired application, and the feature flag streaming-analytics.analytics-rules-plugin is enabled.
• The user has the required privileges to access Analytics Builder models and create new instances of Analytics builder templated models. Refer to Permissions.

Creating your first analytics rule

This topic provides the basic workflow for creating your first analytics rule using the plugin from applications like Device Management. You will create a simple templated analytics model that creates an alarm when the temperature breaches a given threshold value. The steps below require that at least one device is already registered in Cumulocity. Preferably, this device already sends measurement values to Cumulocity.

The model that you add will contain three blocks:

• An input block which receives measurements from devices, groups, or assets.
• A threshold block which verifies the measurement has breached the threshold value.
• An alarm output block which creates an alarm object for specified devices, groups, or assets.

Step 1: Create an Analytics model

This section walks you through creating a simple temperature monitoring model. For more detailed Analytics Builder information, refer to Understanding models.

1. Open the Streaming Analytics application and navigate to Analytics Builder > Models.
2. On the top bar, click New Model, enter a model name (for example, “Create alarm on threshold”) and click OK.
3. From the palette on the left, expand Input and drag the Measurement Input block onto the canvas. In the block parameter editor:

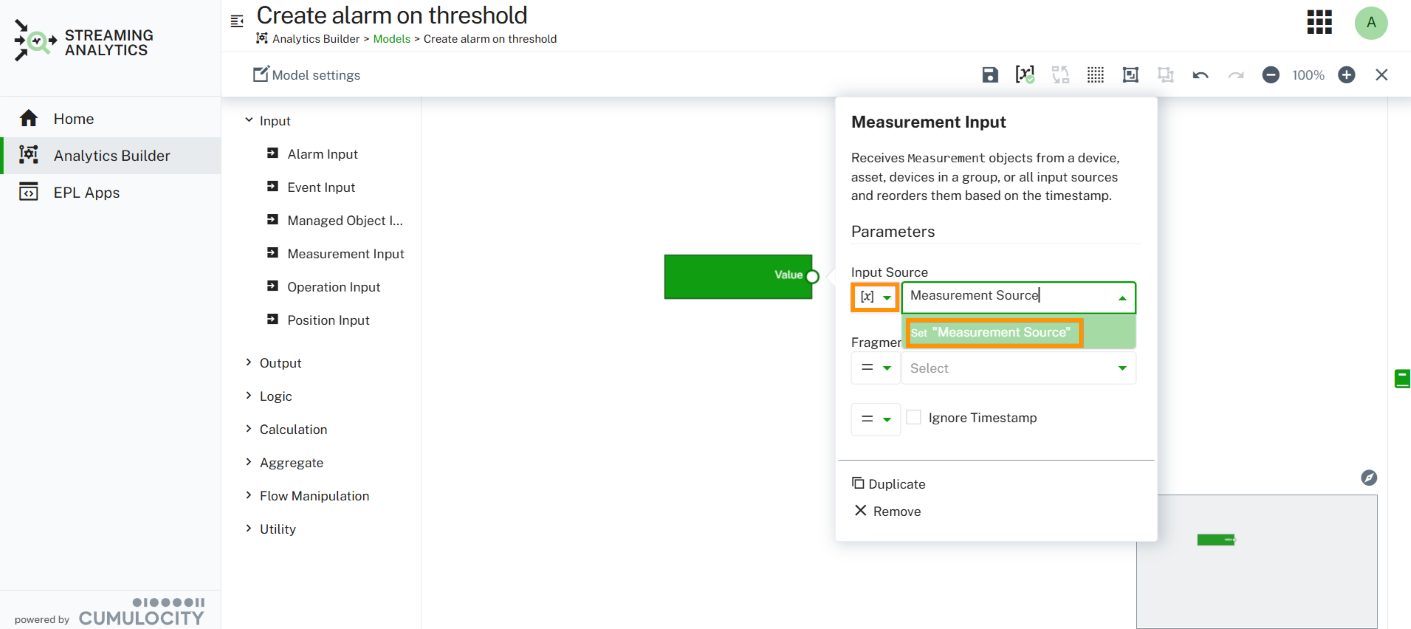

   • For Input Source, select “Template parameter” from the dropdown , then provide a name. For example, “Measurement Source”.

   • For Fragment and Series, select “Template parameter” from the dropdown, then provide a name. For example: “Input Fragment and Series”.

4. Expand Calculation and drag the Threshold block onto the canvas. In the block parameter editor:
   • For Threshold Value, select “Template parameter” from the dropdown, then provide a name. For example: “Threshold Value”.
5. Expand Output and drag the Alarm Output block onto the canvas. In the block parameter editor:
   • For Output Destination, select “Template parameter” from the dropdown, then use the same template parameter given for Input Source of the Measurement Input block. For example: “Measurement Source”.
   • For Alarm Type, select “Template parameter” from the dropdown, then provide a name. For example: “Alarm Type”.
   • For Message, select “Template parameter” from the dropdown, then provide a name. For example: “Alarm Text”.
   • For Severity, select “Template parameter” from the dropdown, then provide a name. For example: “Alarm Severity”.
6. Connect the blocks by clicking and dragging between their ports (small circles on the sides of blocks):
   • Connect the Value output of the Measurement Input to the Value input of the Threshold.
   • Connect the Breached output of the Threshold to the Create Alarm input of the Alarm Output.

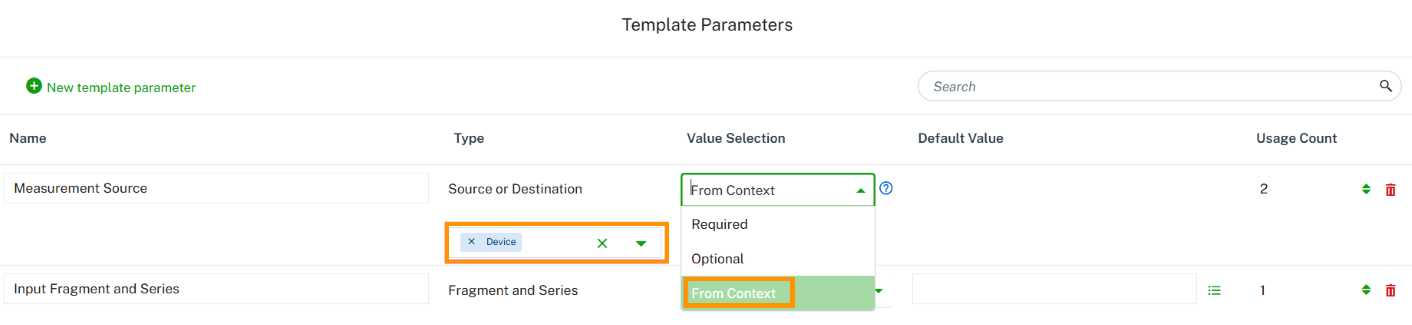

7. In the toolbar of the model editor, click the template parameter icon to open the template parameter dialog. Ensure the template parameter entry provided for Input Source of the Measurement Input block (example : “Measurement Source”) has “Source or Destination” updated to include one or more values from the Restrict to dropdown (for example, “Device”) and set Value Selection to “From Context”. Click OK to save the changes.

For more details about “From Context” and Restrict to, refer to Define template parameters

For detailed information about creating and managing template parameters in Analytics Builder, refer to Managing template parameters.

8. In the toolbar of the model editor, click the save icon to save the model.

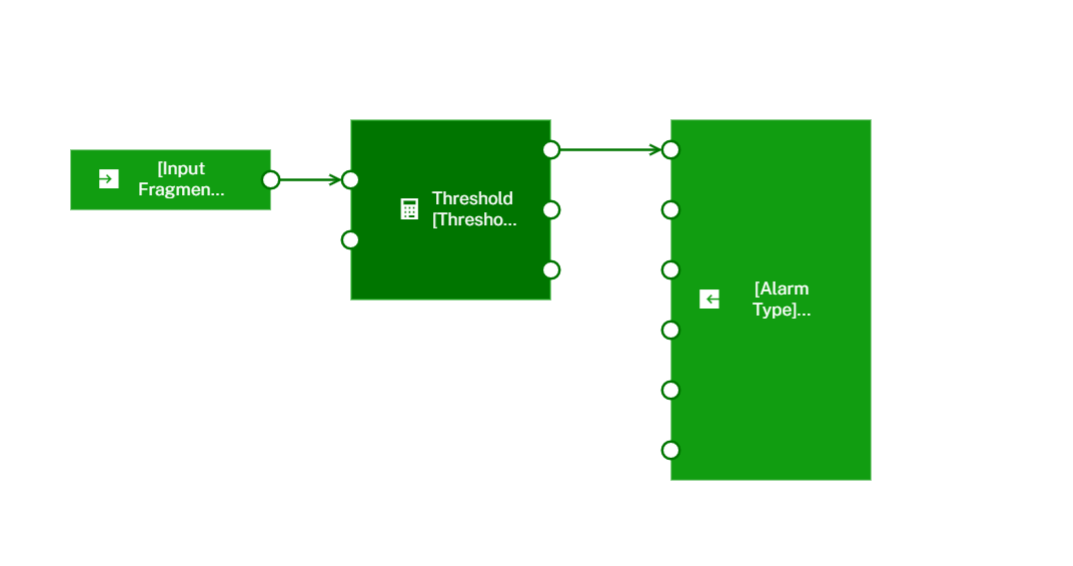

When completed, your model will look similar to this:

Step 2: Create model instance using Analytics rules plugin

1. Navigate to the Device Management application.
2. Go to Devices > All devices and select a device.

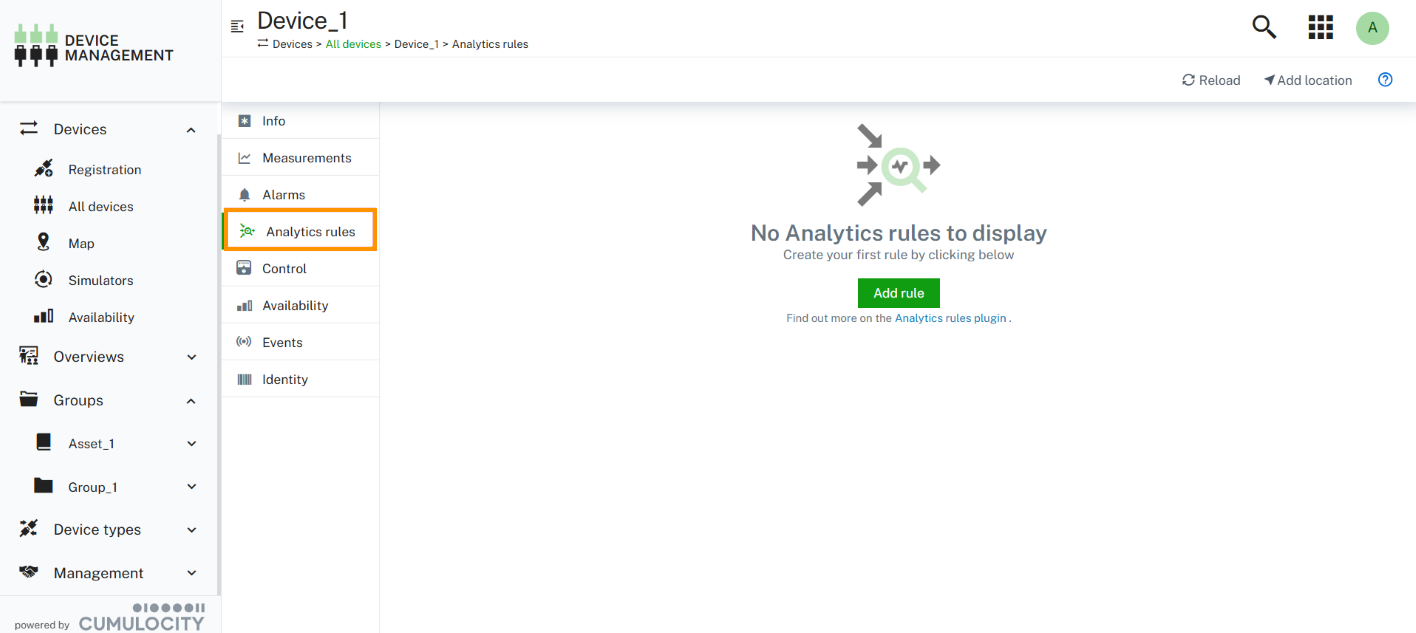

3. Click the Analytics rules tab (embedded as one of the device details tabs). Refer to the Prerequisites section to ensure all requirements are met.

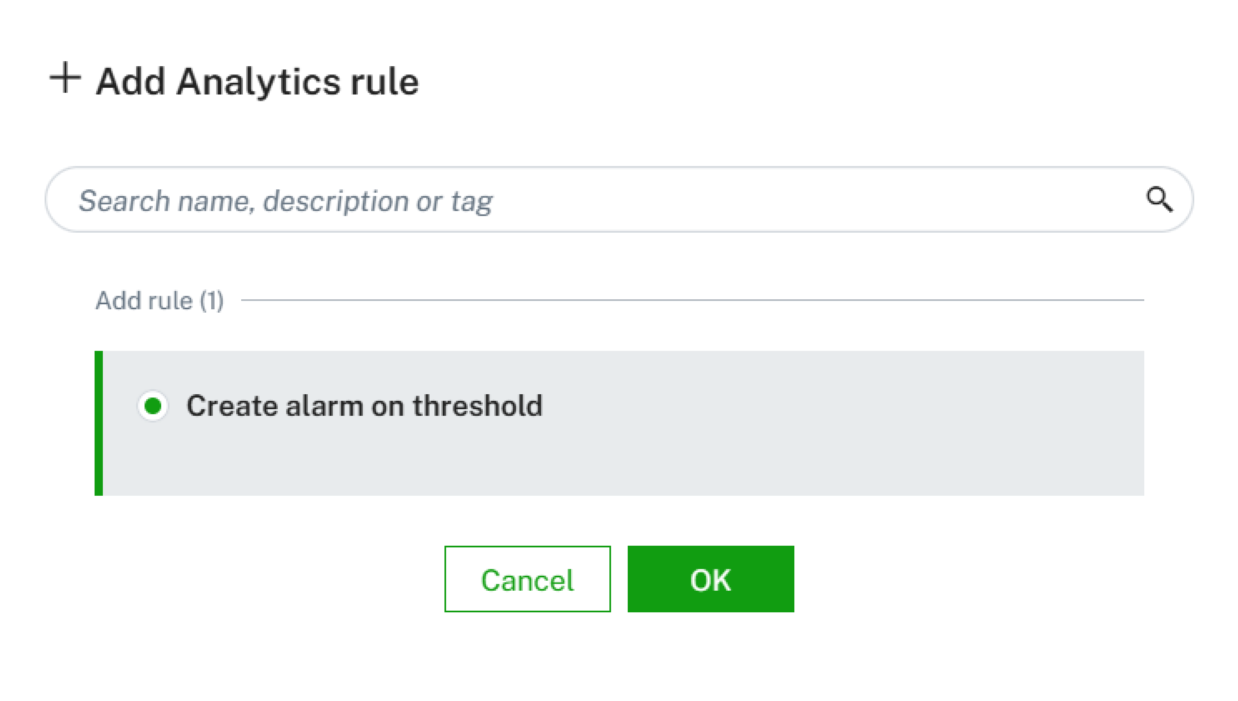

4. Click Add rule to open the Add analytics rule dialog. Since we are currently in the Device context, only models that have been configured with From Context template parameters restricted to Device will be visible here. Select your configured model and click OK.
5. Configure the rule parameters:
   • Optionally update the name or add a note if desired.
   • Populate the template parameter values. The value of the template parameter (for example, “Measurement Source”) configured with From Context is derived automatically from the current device or group context.
   • Click Save to save the rule, or toggle to Active to save and deploy immediately.

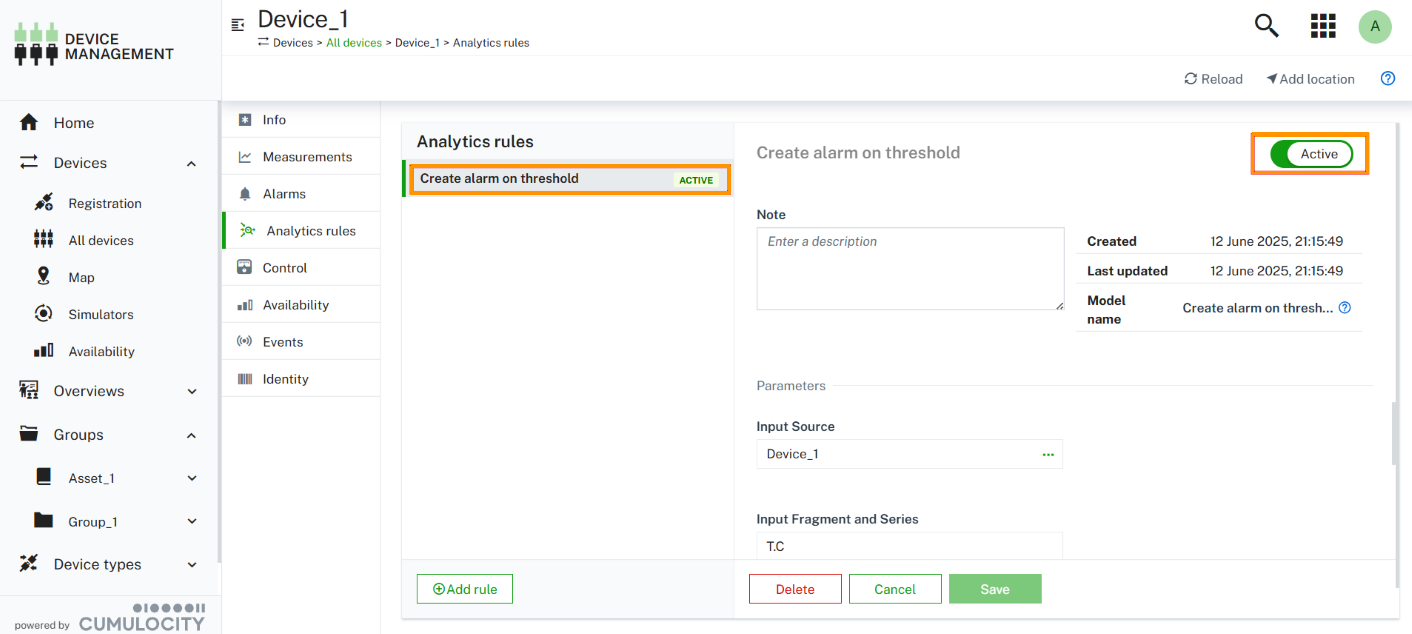

6. Your rule now appears in the Analytics rules list, showing its status (Active/Inactive).

Congratulations! You have successfully created and deployed your first analytics rule using the Analytics rules plugin.

Creating Analytics rules for existing samples

You can also create analytics rules using pre-built sample models from Analytics Builder. The process is similar to creating from scratch but faster since the model logic is already defined.

Step 1: Create a model from a sample

1. Navigate to Analytics Builder > Samples.

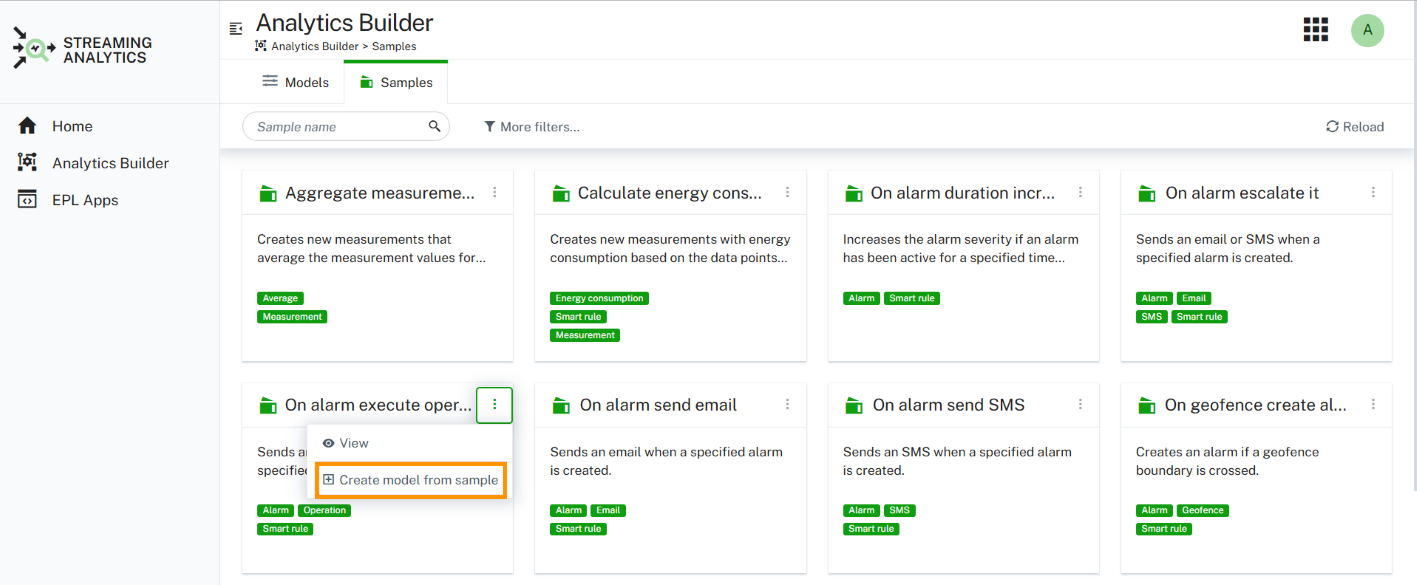

2. Click the actions menu of your desired sample (for example, “On alarm execute operation”) and select Create model from sample.
3. The model editor opens with the sample model ready for use.

Step 2: Configure template parameters

1. Click the template parameter icon in the toolbar.
2. Ensure the template parameter entry provided for Input Source of the Alarm Input block (for example, “Device or group of devices”) has “Source or Destination” updated to include one or more values from the Restrict to dropdown (for example, “Device”) and set Value Selection to “From Context”. Click OK to save the changes.
3. In the toolbar of the model editor, click the save icon to save the model.

Step 3: Create a rule from the Device Management application

Follow the same steps as described in Step 2: Create model instance using the Analytics rules plugin above.

Troubleshooting

1. No models available in Add rule dialog
   • Ensure that the Analytics Builder models have template parameters configured with the “From Context” value.
   • Verify your current context matches the model’s “Source or Destination” type restrictions. For example, when in a device context where the model’s Restrict to dropdown is configured with “Groups” only, that model will not be available. To appear in device contexts, “Device” must be selected in the Restrict to dropdown.
2. Previously created rules don’t appear in the Analytics rules list
   • Verify that the Analytics instances are set to Production mode in the Analytics Builder instance editor.
   • Check if Analytics instance names are set in the Analytics Builder instance editor.
   • Confirm you’re viewing the correct device or group context.
3. Error in Analytics rule deployment
   • Click the runtime error icon to view information about the error.

Understanding the Analytics rules plugin

Analytics Builder workflow versus Analytics rules plugin

Standard Analytics Builder workflow

In the standard Analytics Builder workflow, to deploy analytics instances, users must switch from their primary workflow to the Analytics Builder:

1. Navigate to the Streaming Analytics application.
2. Go to Analytics Builder.
3. Select your model and navigate to the Instances page.
4. Create instances/rules for the model in the instance editor.
5. Configure and deploy rules from the instance editor.

This process requires switching between applications and can be time-consuming when managing rules for multiple devices or groups.

For detailed information about the instance editor workflow, refer to Instance editor.

With Analytics rules plugin

The Analytics rules plugin streamlines this process by enabling analytics builder model instance creation and deployment directly from device and group contexts, eliminating the need for switching to different application.

Understanding the Analytics rules interface

A rule has the following fields and properties:

Integration with Analytics Builder instance editor

The Analytics rules plugin maintains seamless bidirectional integration with the Analytics Builder instance editor.

Rules created in the Analytics Builder instance editor appear in the Analytics rules plugin only when the mode is set to Production. Non-production modes indicate the rule is under development or testing and not ready for deployment.

Rules created through the Analytics rules plugin automatically appear in the corresponding model’s instance editor. These rules can be edited, modified, or deleted from the instance editor.

To prevent deployment of incomplete rules, the instance editor includes enhanced validation on the instance name. The instance name is required and must be unique within your tenant. The instance is available for deployment only after you provide a unique, non-empty instance name.

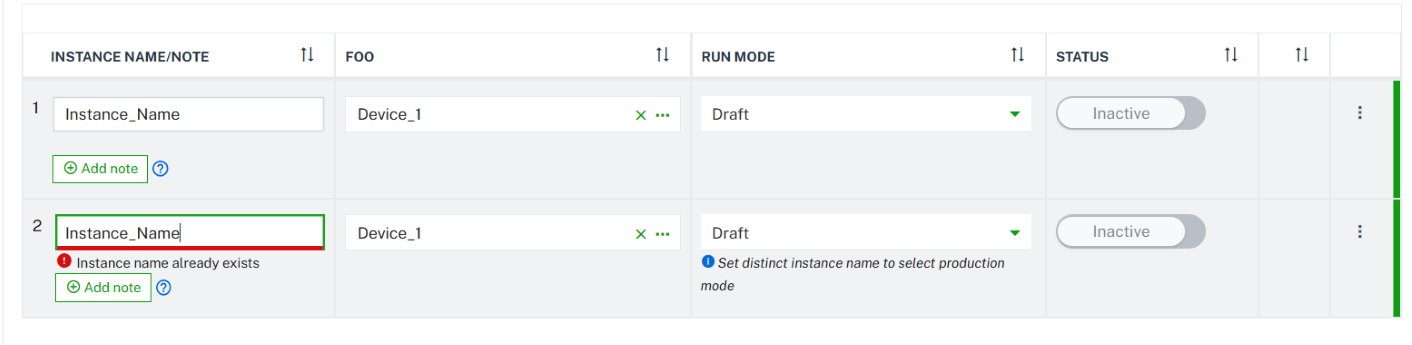

• When the instance name is empty, a message Set distinct instance name to select production mode is displayed below the mode field.
• If you enter a duplicate instance name, an error message Instance name already exists appears below the instance name field and prevents you from proceeding.

This validation ensures that all production-ready rules have proper identification and prevents deployment conflicts.
